Whole-home power and fast charging — industrial protection, with a few setup quirks.
When the grid fails, cheap inverters either trip out or leave you running only a few essentials — not the whole house. If you need true, sustained power that won’t fry sensitive electronics, you’re looking for high continuous output, strong surge capacity, reliable charging and weatherproof hardware.
The 6500W Hybrid Solar Inverter 48V DC to 110V AC aims to solve that: 6,500W continuous (12,000W surge), built-in dual MPPTs, up to 150A battery charging and parallel support for up to six units. It delivers pure sine-wave output and tough IP65 protection for semi-outdoor installs — though the monitoring app and installation demands are items you should budget time (and a good electrician) for.
6500W 48V Hybrid Pure Sine Inverter
A robust, feature-rich hybrid inverter that delivers serious continuous and surge power for home and off-grid use. It pairs high charging capacity and flexible operating modes with industrial-grade protection, though the software and installation demands are worth budgeting for.
Overview
The ANJ-6500W-LVP is a 6.5 kW, 48V hybrid inverter engineered for home on/off-grid systems, RVs, and small commercial sites. It converts 48V DC to clean 110V AC pure sine wave power with a substantial peak capacity for motor loads and startup-heavy equipment. The package combines inverter functionality with two integrated MPPT solar charge controllers and a heavy-duty battery charger, making it a single-box energy hub for systems that need both reliability and expandability.
Key specifications at a glance
Who should consider this inverter
In-depth feature breakdown
Power and output handling
Solar charging and MPPT intelligence

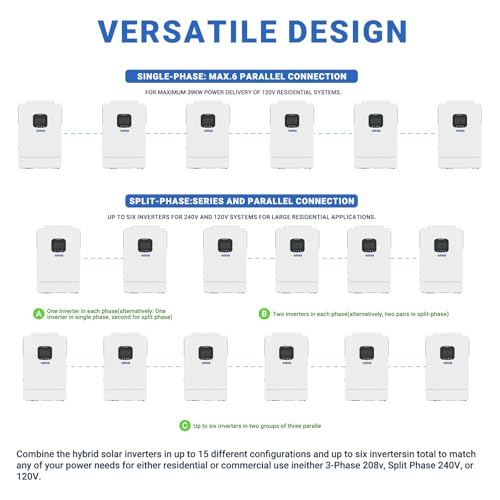

Expandability and parallel operation
Controls, monitoring and usability
Quick comparison table (typical buyer questions)
| Characteristic | What this model delivers |
|---|---|
| Continuous power | 6,500W — suitable for whole-house loads in many residences |
| Surge capability | 12,000W — handles motor starts and compressors |
| PV input flexibility | Dual MPPT, high voltage (to 300V) and large charging current (150A) |
| Scalability | Up to 6 units parallel for large systems |
| Weather resistance | IP65-rated for dusty or semi-outdoor locations |
| Battery chemistry support | Broad — from lead-acid to LiFePO4, with configurable charge profiles |
Installation and wiring notes
Performance considerations and real-world behavior
Protections and battery care
What you get in the box (typical)
Final thoughts
This 6.5kW hybrid inverter is a compelling choice for homeowners and off-grid enthusiasts who want a powerful, expandable, and feature-rich energy controller without stepping up to expensive commercial-grade systems. It combines high charging throughput, modern MPPT management, and practical protections in a weather-resistant package. Expect to invest a little extra effort in installation and to work around some software rough edges if you rely on remote monitoring — but performance per dollar and capacity scaling make it an attractive option for larger residential PV-plus-storage builds.
FAQ
Yes for many moderate households, but check a few key limits first.
Do a load audit (list continuous and starting watts for all major loads) and consult a qualified installer to size inverter count, battery capacity, wiring, and breakers.
Dual MPPT lets two independent PV strings operate at their own optimum points.
Yes. The unit supports LiFePO4 chemistry with configurable charge parameters.
Users find the monitoring tools functional but basic.
Yes, the inverter supports parallel and multi-unit phase configurations, but follow strict procedures.
Yes. Watch these common issues during installation.
When in doubt, hire a qualified installer to prevent overheating, poor connections, or code violations.
56 comments
Price-wise it’s competitive at $659. But buyer beware: shipping weight ~55 lbs — check delivery options. Had to schedule a lift gate delivery. 🤦♀️
Also keep the packaging since warranty sometimes asks for return packing. I stashed mine in the garage.
Good heads-up — we included weight in the specs. Heavy units often need special delivery arrangements.
Mine arrived curbside; I had a friend help carry it in. If you live in an apartment floor, plan ahead.
A constructive note: add clearer labeling on the terminal covers and an LED legend on the front. Saved me some head-scratching during hookup.
Thanks — that’s valuable feedback. We’ll highlight that in future updates if available.
Little labels go a long way during maintenance. Highly recommend.
Agreed. I ended up marking terminals with tape until I got comfortable with the layout.
Wondering about long-term reliability — anyone with a year+ of use chime in? The review gives an expert rating of 8.6 but real-world longevity matters.
If you run close to rated loads continuously, replace fans proactively after a couple years — they’re the usual wear item.
Long-term data is limited; many users in our feedback have had units running several months to a year without issue. Components are industrial-grade but we’ll need more time for multi-year reliability insights.
So far so good for me at 11 months; still recommend monitoring firmware and temps.
Been using mine 14 months — no failures so far. Had one early firmware bug but update fixed it.
Does anyone have experience with firmware updates? The review hints at software quirks — are updates easy to apply?
Firmware updates are possible but the procedure isn’t as straightforward as consumer electronics — involves USB or SD depending on the revision. Check the manual and backup settings first.
Make sure you have continuity of power during the flash — don’t interrupt it or you might brick the unit.
Downloaded one update last month. It’s manual via USB and requires a reboot. Took ~10 minutes.
Pro tip: grounding and surge protection are worth the extra expense. This inverter is powerful; protect your circuits and equipment.
Also consider an isolation transformer if you have sensitive electronics.
I installed whole-site surge protection after a lightning strike nearby — it saved my inverter and chargers.
Agreed. The review called out industrial-grade protection, but external surge arrestors and proper grounding add another layer of defense.
I’m looking at this for a cabin 110V setup. Anyone using it in off-grid mode exclusively? How’s the inverter efficiency on light loads?
For off-grid use, it performs well. Efficiency drops at very light loads (as with most inverters), but eco modes help. We saw good efficiency above typical household loads.
You can configure sleep thresholds; I run lights and fridge fine. Fridge cycles are handled without a hitch.
I use it purely off-grid — standby draw is reasonable and eco mode works well. If you only run tiny loads, think about a smaller inverter or combining with a smart load controller.
Can someone clarify: does the dual MPPT mean two independent inputs or just parallel MPPT channels? I have east and west facing arrays.
Works great for me — much better than a single MPPT trying to handle mismatched arrays.
Yep, I have east and west on separate MPPTs and it maximizes harvest throughout the day.
Dual MPPT means two independent MPPT inputs — good for east/west arrays or different string configurations.
Note: installation is not plug-and-play if you have a complex setup. I spent a full weekend because of wiring and grounding. Worth it for the reliability though.
Yep — also watch the MPPT input voltage range. I wired two arrays and had to rebalance strings to stay in MPPT window.
Good point, James. The review mentions software and installation demands — budget time for setup and double-check all wiring and PV string configurations.
I love that it’s dustproof — ideal for my shed mount. One note: keep vents clear; dustproof doesn’t mean dust-immune.
I mounted mine higher and put a small lip above vents to reduce dust ingress. Works well.
Even with dustproofing, periodic vacuuming of vents keeps airflow optimal.
True — dustproof ratings help but regular maintenance and placement out of direct dust sources are still recommended.
Minor quibble: the fan is audible under high load. Not a dealbreaker but if your inverter is in a bedroom-adjacent closet, you’d notice it.
Agree — mine is in a garage and you can hear it when AC kicks in. If noise is a concern, add sound-damping panels (but keep airflow).
Thanks — fan noise was mentioned by a few users. Recommend placing in a ventilated utility area if possible.
I put mine in an insulated box with venting — quieter and still cool enough. 😄
Great breakdown — thanks for the clear specs and the charging details. I like that it supports parallel up to 6 units; means I could scale if I expand later.
One question: anyone here tried the battery charging at full 150A? Curious about heat/noise under that load.
I ran mine at ~120A for a few hours while topping a large bank — it got warm but fans handled it. Noisy but not obnoxious. Haven’t pushed to full 150A yet.
Thanks Emily — glad it helped. We haven’t stress-tested continuous 150A charging for extended periods in this review, but the unit has industrial-grade protections and a cooling fan. Some users reported warm casing after long high-current charging sessions.
If you’re using AGM vs LiFePO4 the charging profile matters. LiFePO4 will accept higher CC for longer, so keep an eye on temps and battery manufacturer recommendations.
Battery compatibility question: will this work fine with LiFePO4 battery banks? Looking for a 48V solution.
Also ensure your BMS communications (if used) are compatible or that you use correct BMS cutoff settings.
I use it with LiFePO4. Set the proper float and absorption voltages; otherwise charging is excellent.
Yes — it supports 48V systems and high current charging. Make sure to configure charging profile for LiFePO4 and consult your battery maker for exact charge voltages.
Funniest thing: I tried to mount it upside-down (don’t ask), and the cooling warned me pretty quickly via temp alarms. Documentation saved me 😂
Lol. Good to know it won’t let you get away with creative installs.
Ha — glad the protections worked. Mount orientation and ventilation are important; follow the installation guide.
I’m thinking about paralleling two of these for a bigger system. Any pitfalls? The review mentions 6 units support — sounds promising.
Had to match cable lengths and keep units on the same firmware. Took extra time but worked well.
Paralleling is supported, but ensure identical firmware, battery chemistry, and proper communication wiring. Read the parallel setup section in the manual.
And label everything — troubleshooting multiple units gets messy fast.
Also ensure your breakers and busbar can handle inrush/surge current when you parallel many inverters.
