All-in-one power and MPPT charging — solid performance if you’re willing to tinker.
Sick of juggling separate inverters, chargers, and battery banks every time you want reliable home power? The core pain is obvious: complex systems mean more space, more cost, and more things to fail when you need electricity most.
The SUMRY Solar Inverter Charger aims to fix that by combining a 3600W pure sine wave inverter, a 120A MPPT charge controller, and a 100A AC charger into one box — and it can even operate WITHOUT BATTERIES if your PV array can hit the required voltage. It’s a neat, flexible option for homeowners who want consolidated hardware and strong continuous power, but be ready to spend a little time on setup, tuning, and system sizing.
SUMRY 3600W 24V to 110V Hybrid Inverter
A capable all-in-one hybrid inverter that balances power, solar charging, and battery flexibility for residential use. It’s ideal for users wanting a consolidated unit that can run with or without batteries, but expect to invest time in setup and parameter tuning.
Overview
The SUMRY Solar Inverter Charger (3600W, 24V to 110V) is an integrated hybrid energy device designed to simplify residential solar-plus-storage systems. It combines an inverter, a 120A MPPT solar charge controller, and a 100A AC battery charger into a single chassis. That consolidation reduces system complexity, shortens wiring runs, and often lowers overall install cost compared with matching separate components.
Who this unit is for
This inverter is aimed at DIYers and installers building small-to-medium household systems, backup power setups, or off-grid points that require a compact, feature-rich device capable of handling both battery-backed and battery-less operation.
Key technical highlights
| Specification | Value |
|---|---|
| Continuous inverter power | 3600 W |
| Peak inverter power | 7200 W |
| Nominal DC input | 24 V |
| AC output | 110V / 120V pure sine wave |
| Built-in MPPT | 120 A, PV input 60–500 VDC, max PV power 4200 W |
| AC battery charger | 100 A |
| Dimensions | 13.8 x 4.3 x 16.5 inches |
| Weight | 18.7 lb |
Design and build
The enclosure is compact for the capacity it provides, and physical connections are grouped to streamline installation. The front-panel LCD displays operating data—input/output voltages, charge current, battery voltage and mode—so you can verify system behavior without external hardware. Cooling is handled by whisper-quiet fans and a well-ventilated chassis, keeping noise low during normal operation.
Performance and real-world use
The inverter delivers a clean, pure sine wave AC output suitable for sensitive electronics like computers, routers, and entertainment gear. It has a solid continuous output at 3600W, with sufficient surge capacity to start motors or compressors for short durations. In practice, this makes it suitable for running refrigerators, lighting, entertainment systems, and many other household loads concurrently if the combined draw stays under rated limits.
The built-in MPPT is notable: at 120A it supports reasonably large PV arrays and allows for efficient solar charging across a wide PV voltage range (60–500 VDC). That flexibility helps in matching the inverter to both string and larger panel configurations without requiring an external controller.
Battery-less operation: what to expect

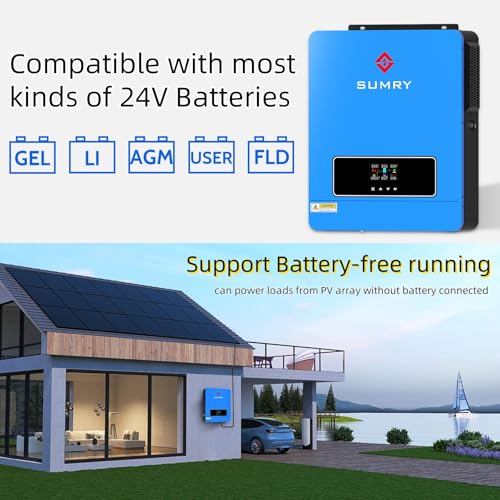

A standout capability is the inverter’s ability to operate without a battery when PV input voltage exceeds the required threshold (roughly above 120V). This can be an attractive option for users who want to run loads from solar directly during daytime, avoiding battery expense and complexity.
However, a few practical caveats apply:
Setup, configuration, and monitoring

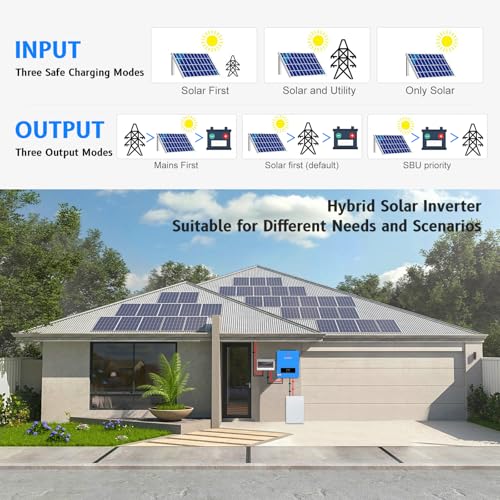

The onboard LCD gives direct access to most settings such as battery type (AGM, GEL, LiFePO4, etc.), charging currents, and priority modes (solar first, battery first, or utility prioritized). While the interface is functional, parameter tuning requires reading the manual and understanding battery charging profiles.
Remote monitoring is supported via an optional module (sold separately), which adds convenience for users who want real-time telemetry, logs, and remote parameter adjustment. If remote monitoring is a priority, plan for that additional purchase during system budgeting.
Protections and reliability features
The inverter includes multiple safety layers to protect the unit and connected equipment:
These protections make it suitable for unattended systems and emergency backup scenarios where automatic switching and safe behavior are desired.
Installation considerations
Installation is straightforward for someone with electrical experience, but these are important points to consider before purchase:
Practical tips for optimal use
Expandability and integrations
The SUMRY unit works as a standalone hybrid inverter, but it also plays well in systems that later expand battery capacity or PV arrays (within the MPPT and inverter limits). For sites that require remote data or grid-interactive features, the optional communication module enables more advanced monitoring and control.
Limitations to be aware of
Final thoughts
For homeowners and small installers seeking a compact, cost-conscious hybrid inverter, this SUMRY model provides a compelling mix of features: a powerful MPPT controller, robust inverter capability with pure sine output, and the versatility to operate with or without batteries. It shines where consolidation, flexibility, and relatively high PV input compatibility are priorities, but it rewards users who take the time to learn the configuration options and plan the PV/battery layout carefully.
FAQ
Yes — the unit supports battery-less operation when the PV input voltage is high enough (typically above ~120V). That lets you power loads directly from solar during sunny periods, but you’ll lose stored energy for night or extended cloudy days, so plan the array and loads accordingly.
The inverter is compatible with common battery chemistries including lead-acid, AGM, GEL, and lithium (including LiFePO4). For lithium batteries you should select the lithium setting and match the charge voltage/current parameters to the battery manufacturer’s specs to ensure full charging and safe operation.
The built-in MPPT supports up to 4200 W of PV input and a PV voltage window of 60–500 VDC. When sizing panels, keep the MPPT limits in mind and consider actual site conditions (temperature, array orientation) so you don’t exceed the controller under peak insolation.
The inverter uses quiet cooling fans and a ventilated design; most users report low operational noise. It’s suitable for indoor installation in a ventilated, dry space away from direct sunlight and flammable materials.
If you’re comfortable with DC wiring, battery connections, and local electrical codes, a competent DIYer can install it. However, because the unit interfaces with grid AC, batteries, and high-voltage PV, professional installation is recommended to ensure safety and compliance.
Yes — configured properly, the inverter can switch to battery or solar supply automatically when grid power fails, providing an uninterruptible power source for critical circuits. Ensure your transfer settings and battery capacity are sized to cover desired loads and runtime.
Remote monitoring is available via an optional communication module (sold separately). With that module you can view real-time data and logs, which is useful for troubleshooting and optimizing system settings.
Common issues include incorrect battery profile settings (especially for lithium batteries), undersized PV arrays for battery-less operation, and inadequate DC cabling/fusing. Read the manual, match battery specs, and consult an installer if unsure.
23 comments
Couple of things that the review touched on but I’d like to highlight from my own experience:
1) Documentation: The quick start is fine but the deeper parameter lists are buried in a long PDF. You’ll want to read it if you’re changing charge profiles.
2) Integration: If you’re trying to tie this into an existing battery-based system, plan for some downtime while you configure priorities and thresholds.
3) Safety: The unit is compact for 3600W, but that means heat density. I recommend a small external fan if you’re mounting it in a semi-enclosed space.
Minor quibble: the unit’s display isn’t the fanciest, but it gives the info you need. Overall solid product for the price point.
Totally agree on the fan. I used a thermostatic fan that kicks in only above 45°C — keeps things quiet and cool.
Good points, Daniel. The compact size is handy but cooling is something we advise people to consider, especially in tight locations.
If anyone wants, we can add a short checklist of recommended accessories (fan, cabling gauge, soft-starter suggestions) in the article comments section.
Nice tip, Nina. A thermostatic fan sounds like the perfect upgrade for those in hot climates.
Interesting review. A few quick questions:
– How does it compare to similarly priced 3.6kW inverters in terms of build quality?
– Is the Amazon merchant reliable for returns/warranty claims?
I noticed the expert rating was 8.5/10 — that suggests minor drawbacks but generally strong. Considering buying but want to know about support options.
Zoe — in our testing the build quality is on par with other budget-friendly hybrid inverters. Fit and finish are decent. Regarding the merchant: Amazon’s return process helped in our evaluation, but for warranty specifics you might want to keep the box and invoices and check SUMRY/SRGFTS policies too.
I ordered from Amazon and had to RMA once; seller was cooperative but it took a few weeks. If you need fast support, consider buying from a local dealer if available.
Thanks — good to know. Waiting on a sale maybe, but I’ll keep the warranty paperwork handy.
Curious about the 120A MPPT spec — that sounds powerful for a 24V system. Does anyone know realistic panel string configurations to pair with this? I’m thinking two parallel strings of 12 panels each (panels ~36V Vmp) but I don’t want to overvolt it.
Also, for those using AGM or lithium, does the unit auto-detect battery chemistry or is there a menu to set charging parameters?
I used two strings of panels with an MPPT like this on a 24V setup. Just double-check Vmp and Voc against the inverter’s limits, especially in cold temps (Voc rises).
Priya, the MPPT can handle high current but you should keep the PV open-circuit voltage within the inverter’s spec. The unit has settings for battery type (AGM, lithium, etc.) but it doesn’t auto-detect chemistry — you select and can tweak float/absorption voltages in the menu.
Nice write-up. Quick note: does anyone know how loud this unit runs? I live in a small apartment and would prefer something quiet if I’m putting it in a closet or utility cupboard. Also, does the Amazon seller include a warranty card with the unit?
So it runs WITHOUT batteries, huh? Sounds like the dream of every procrastinating DIY-er who hates battery maintenance 😂
I’m skeptical about long-term reliability in battery-less mode. The MPPT controller must be doing a lot of work to stabilize voltage directly from panels — any overheating issues reported? Also, how well does it handle cloudy days when solar input fluctuates?
If you do, post back with your test notes. Community data on long-term battery-less use would be really helpful.
Ben — good skepticism. In battery-less mode the MPPT and inverter rely on the solar input and grid (if present) to smooth things. In our shorter-term lab tests we didn’t see overheating under normal loads, but continuous heavy loads in variable sun can push temperatures higher. If you plan to run critical loads, adding even a small buffer battery helps stability.
There’s a fan inside — not whisper-quiet but nothing industrial. I put mine in the garage and it’s not annoying.
I run mine mostly without batteries on sunny days. It handles fluctuations ok, but when clouds roll in you’ll see the output dip and the inverter will draw from grid or reduce output depending on settings.
Thanks for the details. Might pick one up for testing then — cheap enough to experiment with.
Thanks for the thorough review — this answered a lot of my questions.
I like that SUMRY advertises battery-less operation; that’s a big plus for weekend cabins where we only want to run a fridge and a few lights without committing to a big battery bank.
Two things I’m curious about: how smooth is the transfer when grid power fails, and did you notice any weird voltage spikes during startup loads (AC motors, fridge compressor)?
Also, $299.99 on Amazon seems almost too good for a true 3600W pure sine hybrid — was there any catch or known firmware quirks during your testing?
I installed one in my cabin last month. Transfer time was fine for lights and my mini-fridge, but when the A/C kicks on the compressor struggles a little. I tweaked the inverter’s output priority and it helped. Worth the price tbh 😊
Good questions, Mark. The transfer was fairly quick in our tests — not instantaneous like some UPS systems, but fast enough for most loads. We did notice a short dip for motor start, so you might want a soft-start fridge or staggered loads. No major voltage spikes, but the parameter tuning took a bit to dial in.
FWIW, check if your fridge has a high inrush current. Some folks add a small UPS or a soft starter for compressors — cheaper than batteries in some cases.
