BLUETTI Elite 300 12V Ports: The Shared 30A Limit
VibePicks may earn a commission if you buy through links on this page, at no extra cost to you.
The BLUETTI Elite 300’s 12V/30A DC port and cigarette-lighter socket share a 30A total. They are not two independent allowances you can add together. The US manual makes that shared limit explicit, and it is the first number to check when planning several 12V loads for a camper or portable setup.
There is a second distinction to keep clear: the TT-30 outlet is an AC outlet. It is not the 12V/30A DC connector. This document-based guide concerns the US Elite 300 with 3,014.4Wh capacity, not a similarly named model or a different regional version.
Three connections with different limits
| Cigarette-lighter output | 12 V / 10 A |
| Dedicated DC output | 12 V / 30 A |
| Both 12V ports combined | 30 A total |
| US AC output, discharging | 120 V / 2,400 W max. |
| US AC output, bypass | 120 V / 1,800 W max. |
Source: the Elite 300 US user manual, connector overview on page 9 and specifications on page 21. Read the manual supplied with your unit before connecting equipment.
A shared current budget changes the plan
The smaller socket has its own 10A limit, while the two 12V outputs together must stay within 30A. A hypothetical 8A load on the cigarette-lighter socket plus an 18A load on the dedicated DC connector totals 26A. That arithmetic fits the stated current ceilings, but it does not verify connector suitability, startup demand, cable rating or compatibility with either appliance.
By contrast, 8A plus 25A is 33A. The fact that each individual load appears below one port’s number does not make that combination acceptable: the shared ceiling is exceeded. Do not plan around the protection system tripping as a normal operating strategy. Leave room for changes in demand rather than designing a schedule that constantly touches a published maximum.
Match voltage, current, connector and the equipment instructions before choosing a cable. A similar number in the name does not establish electrical compatibility. Do not improvise a connection between these ports or bypass protective devices.
Why the TT-30 shape does not promise full shore power
The TT-30 connector is part of the station’s AC output system. Its physical format does not increase the inverter’s output rating. For the US model, the manual lists 2,400W maximum when discharging and 1,800W maximum in bypass. Those are separate operating conditions, so a plan that fits one may not fit the other.
For an RV, list what may operate at the same time before treating the connector as permission to run the whole vehicle normally. Air conditioning, cooking equipment and battery charging can overlap. Check the actual equipment requirements, including startup behavior, with the RV documentation or a qualified installer. Our RV TT-30 power-limit guide explains the same connector-versus-output distinction using another station; its product specifications should not be transferred to the Elite 300.
Choose the path from the appliance requirements
Start with each device’s documented input. Record the voltage, normal current or power, startup requirement, and approved connection method. Then identify the correct output and the other devices sharing that output budget. A label saying “12V” is only one part of the check; it does not establish polarity, plug size, cable suitability or the behavior of an entire camper installation.
This is a planning checklist, not wiring instructions. If the intended use involves a fixed RV circuit or a building connection, have the equipment and protective arrangements assessed by a qualified installer. Do not connect the station’s AC output to the electrical grid. Our home-backup transfer-switch checklist covers the questions to bring to that discussion.
Current capacity is not runtime
An amp limit tells you how much current a connection can support under its documented conditions. It does not tell you how long a refrigerator will run. Battery energy, cycling behavior, conversion losses and the reserve you retain are separate considerations. Log the real load pattern instead of dividing a headline battery capacity by an appliance’s most convenient number.
For a repeatable record of that distinction, use our power-station runtime log. A measured session with your equipment can inform your plan; this article does not claim an Elite 300 runtime test.
The US store lists the base Elite 300 for pre-order, with shipping from October 23. That is a listed dispatch starting date, not a guaranteed delivery date. Confirm your destination and current terms before ordering. No applicable coupon is claimed here.

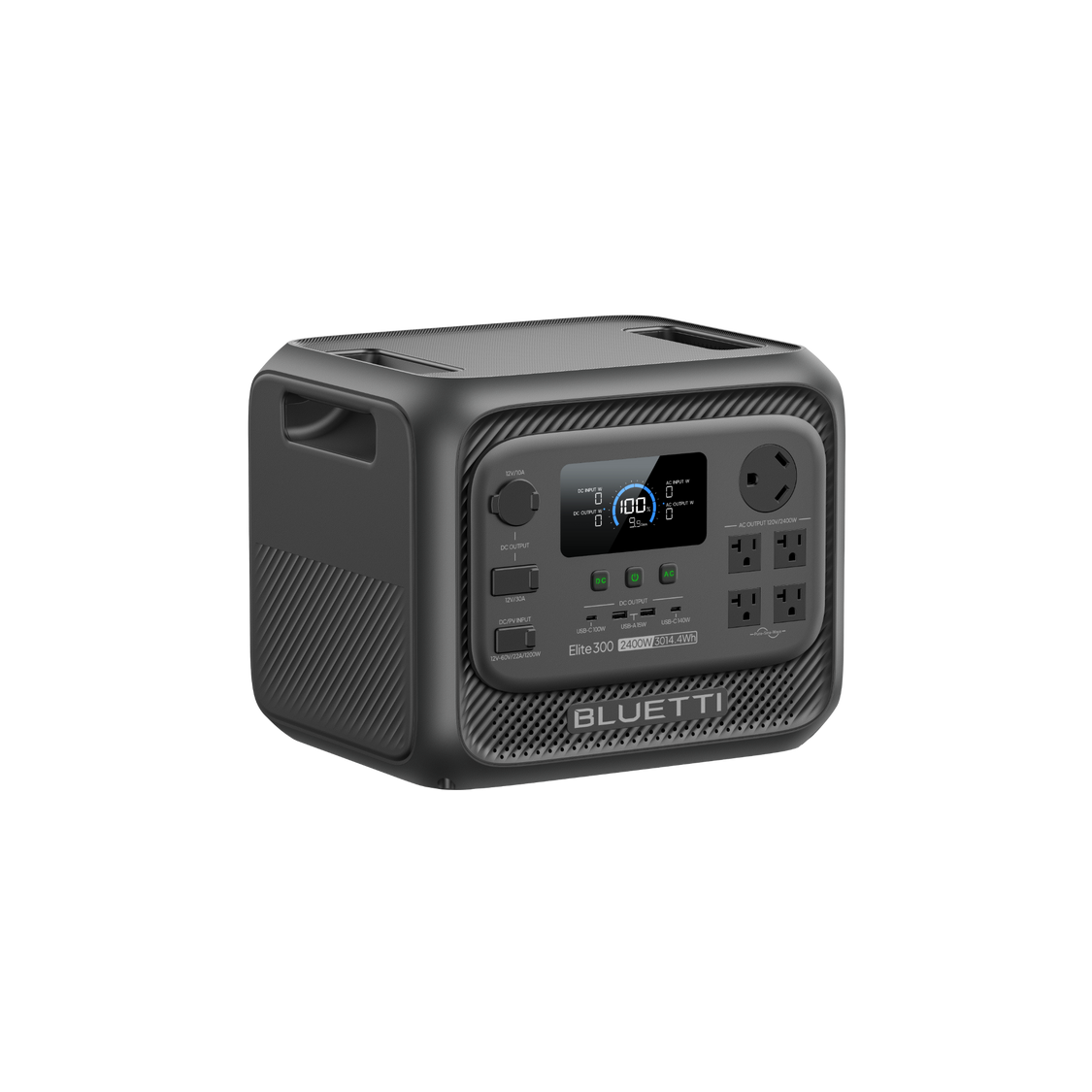

The 3,014.4Wh US model discussed above. Pre-order shipping was listed from October 23 when checked October 20, 2026. Check current availability and delivery terms.
The practical decision is to build two plans: a shared-current budget for the 12V ports and an operating-mode power budget for AC loads. Keep them separate, document the equipment requirements, and resolve any connection uncertainty before buying accessories. Manufacturer product and availability source: the current US Elite 300 listing.
