Redodo 200Ah Plus RV Battery: Plan Energy and Power Separately
VibePicks may earn a commission if you buy through links on this page, at no extra cost to you.

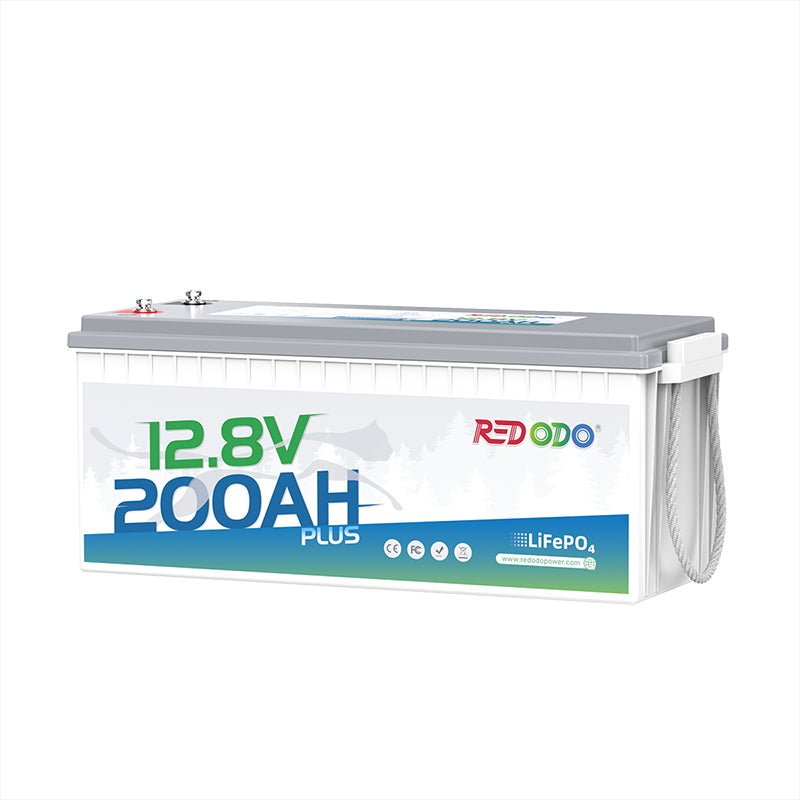

A 200Ah RV battery needs two separate checks: enough stored energy for the day, and enough power for the loads running together. The Redodo 12V 200Ah Plus has a 2560Wh nominal energy rating and a 200A battery management system. Neither figure, by itself, promises a weekend away from hookups.
This document-based guide covers the Plus model FE-A28528N-11 sold through the US store. It is a house-battery planning example, not a hands-on test or an installation tutorial. The battery is one component of a system; it does not provide a household AC outlet on its own.
Identify the exact Plus model
| Model | FE-A28528N-11 |
| Nominal voltage / capacity | 12.8V / 200Ah |
| Nominal energy | 2560Wh |
| BMS / continuous discharge limit | 200A |
| Manufacturer charging range | 32–122°F (0–50°C) |
Start with watt-hours, then leave a reserve
The arithmetic is 12.8V × 200Ah = 2560Wh. That is a nameplate energy calculation, not measured energy delivered to your appliances. Conversion losses, inverter standby draw, operating conditions and your chosen reserve reduce the amount available for a trip. Use the energy at the load as the starting point for a budget.
For an illustrative day, suppose a refrigerator uses a measured 400Wh, lights use 60Wh, a water pump uses 30Wh and electronics use 150Wh. The total is 640Wh. These are invented planning inputs, not consumption claims for your equipment. Replace each number with a meter reading or appropriate equipment documentation, including any intermittent loads.
If you choose to reserve 20% of nominal capacity for planning, the remaining arithmetic allowance is 2048Wh. Dividing that by 640Wh per day gives 3.2 days before losses. This is not a Redodo runtime forecast: the 20% reserve is an example, and real usable energy may be lower. A cold night, extra laptop charging or a fridge working harder can change the budget.
The 200A limit answers a different question
Redodo’s 200Ah Plus specification page lists a 200A continuous discharge limit and 2560W maximum continuous output at nominal voltage. That is a battery-side specification. It does not certify an inverter, cable run, fuse or RV distribution system for the same output.
For perspective, a hypothetical 1500W AC load through an inverter operating at an assumed 90% efficiency would require about 130A at 12.8V: 1500 ÷ 0.90 ÷ 12.8. Inverter efficiency is an assumption here, and current changes with voltage. Startup demand and other simultaneous loads need separate consideration. Have a qualified installer assess the complete system rather than selecting parts from this one calculation.
Redodo excludes starter-battery use and lists additional application restrictions, including electric jacks and certain high-power equipment. Check the exact application with the manufacturer and your installer before purchase.
Check charging and fit before ordering
The manufacturer recommends 40A charging and specifies 14.4V ± 0.2V for this model. A simple 200Ah ÷ 40A calculation gives five hours from empty in an ideal constant-current exercise; it is not a complete charge-time prediction. Charging stages, available supply and existing battery state change the time required.
Ask your installer whether your converter, solar controller and alternator charging equipment have suitable settings for this exact battery. Ask how charging will be prevented outside its stated temperature range. A discharge temperature rating below freezing does not authorize charging below freezing. Do not assume a generic BMS label means self-heating or low-temperature charge protection.
Confirm enclosure clearance, terminal access, restraint and the actual battery dimensions before replacing an existing bank. Our Redodo Ultra-Mini versus Group 24 guide illustrates why similarly named models require separate checks. If you want an integrated AC solution instead, see the Growatt RV outlet planning guide; it is a different product category.
Check FE-A28528N-11, US delivery and full application restrictions. The battery requires an appropriate charging and distribution system.
Buy for a measured energy budget
On October 21, 2026, the US store offered the new single-pack battery for purchase. Its shipping policy limits delivery to the contiguous US and excludes Alaska, Hawaii and Puerto Rico; verify your destination before ordering. Store stock and delivery estimates can change.
We checked the store’s current promotions and the available promotional listing. No coupon is promised for this purchase: eligibility and stacking for the exact single-pack order were not independently established, and no checkout redemption was tested. The product card is a manually maintained listing, so check the current store terms.
Choose the 200Ah Plus when your measured daily budget, required reserve and verified system design fit its limits. If your plan only works by assuming every nominal watt-hour reaches an AC load, revise the budget before buying a larger battery.
